Componenti della serranda

029-03-017

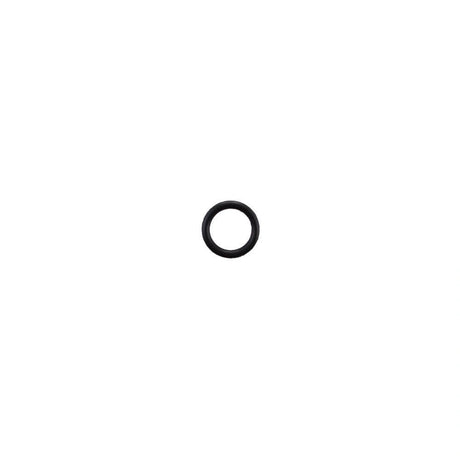

Seals: O-Ring ((-017) .070 C.S. X 0.676 ID) Standard N-70 Static

038-00-127

Retaining Ring: 2016 Smalley VS31S16

038-00-140

Retaining Ring: 2016 Internal Smalley XAH-50 302 SS

038-01-161

Retaining Ring: External, Round Wire (ø.039 Wire, .302 free ID)

039-00-432

Spring Trek 2018 TS2 Â IFP 2.373 FL .260 OD 7.3 LB/IN

039-00-496

2019 Spring Torsion DPX2 Remote 0.036 in lb/deg 0.08 pitch

044-08-040

Valve: 2016 (.400in OD X .252in ID X .008in TH)

060-00-038

Pin: Dowel (Ø .125 X .1875 TLG) 18-8

081-10-060

Valve: (T) Reed DPX2 Blowoff (.180W x.600 TLG x .010 TH)

081-12-060

Valve: (T) Reed DPX2 Blowoff (.180W x.600 TLG x .012 TH)

204-18-204

Body: Outer FLOAT X2 .940 Bore Black 185(T) X 55

204-18-237

Body: (T) Tube Inner X2 .868in Bore FLOATX2 250 x 75

207-50-008

Body: (T) (Ø 0.940 Bore 1.060 OD 3.437 TLG 1.125-20 UN-2A) Impact Extrusion Al 6061 Kashima

210-03-317

Damping Adj Part: Detent Housing, 2022 FLOAT X & DHX

210-03-319

Damping Adj. Part: Remote Pulley, 2022 FLOAT X

210-03-320

Damping Adj. Part: Remote Lockout Cam, 2022 FLOAT X

210-03-321

Damping Adj. Part: Cable Hanger, 2022 FLOAT X

210-03-332

Damping Adj Part: Lockout and LSC Adjuster Shaft, 2022 FLOAT X & DHX CNC

210-22-725

Piston: Valve Housing Cap No Dish Trek Float RG (.922 OD .220 TLG) Clear Ano II

210-24-085

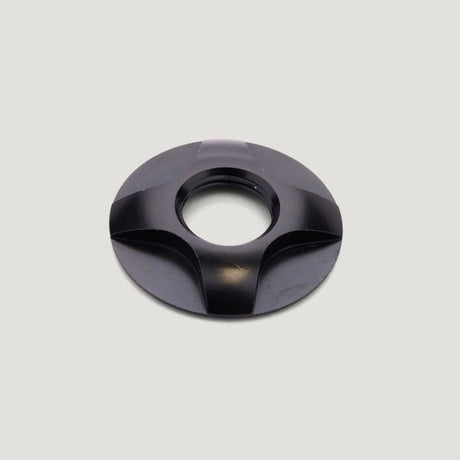

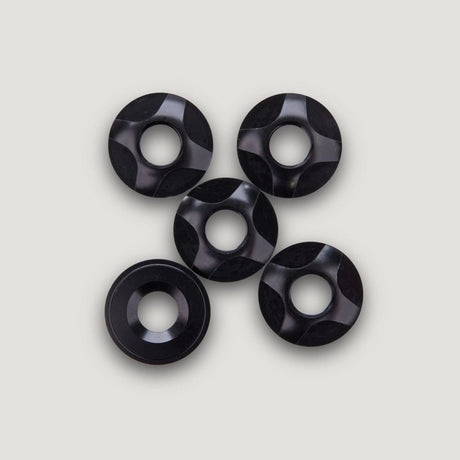

Kit: Lockring Resi End Cap 2017 LIVE [.150 TLG 1.050 OD] Al 6061 Black Ano Type II Quantity 5

210-24-223

Compression Selector Stop Pin FLOAT DPX2

210-24-286

Pulley: Dual Travel 2 2018

210-24-293

Spacer: DHX2 Metric and Trunnion (.700 OD X .358 ID X .350 TALL)

210-24-297

Damping Adjust Part: Compression Needle Driver Float DPX2 F-S

210-24-306

Damper Shaft Inner  DPX2 210 X 55 DUAL TRAVEL (3.755 TLG)

210-24-309

Damper Shaft Inner DPX, 250/225(T) X 75/70 (4.106 TLG)

210-24-373

FLOAT DPX2 Port Selector Valve Rebound Laser Ablated

210-24-998

Kit: Pulley: 2022 Nude 5 / 5T Cable Remote G3 Quantity 5

210-26-218

Spring Perch, HSC, Valve Preload, 2024 DHX2 / Float X2

210-84-504

Damping Adj (T) Part: Rebound Rod, 75mm Travel, 113.5 TLG, 2022 DHX, G2
